TS TSQ-71ED 71mm f/4.9, 347mmm,
Quadruplet Flatfield Refractor and Meade LX90 8" on Celestron CGX
|
TS 12" ONTC ASA f/2.8 Carbon Newton, 876mm,
Moonlite CRL2,5+Motorfocuser, OAG:TSOAG9,
Filtercharger,
Gudingcam:ASI290min, Maincamera:ASI2600MCPro
on Celestron CGX-L with Starsense-, GPS-, Wifi-Module
|
Celestron EdgeHD 1100 with ASI2600MCPro
Guidingcam:ASI178
operating on Celestron CGX
|
Meade LX90 8", 2000mm
|
TSQ-71ED
71mm f/4.9,347mm,
Quadruplet Flatfield Refractor, OAG:TSOAG9,
Guidingcam:ASI120mini,
on Meade LXD75
|
SW Adventurer with Canon 70-200 f/4
|
| Telescopes: |
TS 12" ONTC ASA f/2.8, Carbon Newton, 303mm-Pyrex-Mirror, Sec-Mirror 100mm, 876(1200)mm, with Moonlite CRL2,5+Motorfocuser
(f/4(1200mm) with GPU, f/6(1800mm) with APM 1.5x Corrector, f/11(3240mm) with APM 2.7x Corrector)
Celestron EdgeHD 1100 f/10, 2800mm, with Celestron Motorfocuser
TS TSQ-71ED 71mm f/4.9 (347mm) Quadruplet Flatfield Refractor, Zwo EAF Motorfocuser
Meade LX90 UHTC, 8" f/10 Schmidt-Cassegrain, 2000mm, JMI-Autofocuser/Pierro Astro Focuser 3 USB
Canon RF 24-70 f/2.8, Canon RF 70-200 f/2.8, Canon EF 70-200 II f/2.8, Canon EF 100-400 II f4.5-f5.6, Canon EF 24-70 f/2.8, Canon EF 70-200 f/4
Skywatcher Explorer 200PDS 8" f/5 Newton, 1000mm
Skywatcher Maksutov SKM127 (D=127mm,F=1540,f/12,1)
Skywatcher RichField Refractor 102/500mm CLR1025 f/5
|
| Mounts: |
Celestron CGX-L with Starsense, GPS-Module, Wifi-Module, QHY Polemaster (the tripod was shortened by 15cm)
Celestron CGX with Starsense, Wifi-Module, QHY Polemaster (the tripod was shortened by 12cm)
Meade LXD75
Skywatcher Adventurer
Meade-LX90-Mount with Wedge
Selfmade Tripod Dolly 100cm with wheels for Celestron CGX-L
Selfmade Tripod Dolly 90cm with wheels for Celestron CGX
|
| Correctors/Reducer: |
ASA 2" Newton Coma Corrector and 0.73x Reducer
APM 2" Newtonian Coma Corrector and 1.5x Barlow
APM Coma-corrected 1.25" ED Barlow 2.7x
GPU Superflat 2" Coma Corrector
Baader MPCC Mark III Newton Coma Corrector
Celestron Focalreducer f6.3
Meade CCD-Focalreducer f3.3
|
| Photography: |
Kameras:
Zwo ASI 2600 MC Pro
Zwo ASI 071 MC Pro
Zwo ASI 183 MC Pro
Zwo ASI 178 MC
Canon EOS 6Da Astro (removed LPF2-Filter)
Canon EOS 600Da Astro (removed LPF2-Filter)
Canon EOS 60Da Astro (removed LPF2-Filter)
Canon EOS R5
Canon EOS 6D MII
Guiding-Kameras:
2x ASI290 mini Guiding Camera
2x Zwo ASI120 mini Guidung Camera
Meade Deep-Sky-Imager (DSI-1)
Guiding:
Askar Off-Axis-Guider
3xTS Off-Axis-Guiders 9mm/11mm
Meade Off-Axis-Guider
TS Optics 50mm DeLuxe Mini Guiding Scope and Finderscope
Filterholder:
TS-Optics Filter 2" Filter Holder &
2x Zwo Filter 2" Filter Holder
|
| Filter: |
| Hutech IDAS LPS P2 2" Light Pollution Suspression Filter |
I think the IDAS LPS P2 is the best all-purpose contrast-filter for any cameratype. Very balanced colors.
It is possible to let the filter always in the optical system to supress light pollution.
|
| Hutech IDAS LPS NB1 2" Nebula Filter for Astrophotography |
This Filter has an stronger stray light suppression than the LPS-P2 (Exposure time extension ist factor 3)
Let H-beta, [O III], C2 (partially) and H-alpha through.
This filter seems to work very good for nebulas. Galaxies and stars tend to turn a little bit to red.
|
| Hutech IDAS LPS D1 2" + EOS-Clip Light Pollution Suspression Filter |
The IDAS LPS D1 is nearly identical to the IDAS LPS P2. The IDAS LPS D1 allows a 2x extension of the exposure time.90% of the important lines in the deep-sky range (like H-alpha and [O III]) are transmitted.
|
| Baader Skyglow-Filter 1 1/4" & 2" |
The Skyglow Neodymium-Filter is a moderate all-purpose contrast-filter for any cameratype. Colorshifts to red are good to handle.
It is possible to let the filter always in the optical system. Sometime it helps, sometime not, but is never a problem.
|
| Lumicon Deepsky 2" |
All-purpose Nebula filter and also good against light pollution. It blocks all high & low pressure mercury
and sodium vapor lamp light, neon lights and airglow.
Good to handle with astromodified Cameras. Difficult with normal Cameras (missing IR, Colorshift to blue/turquise)
|
| Astronomik OIII 2" |
Classical O-III-Nebula-Filter (passfrom 494 to 506nm)
|
| Astronomik L-2 UV IR Blockfilter - Clip-Filter for Canon EOS |
IR/UV-blocking filter for Canon EOS (APS-C)
|
| 2 x Astronomics IR-Filter 1 1/4" |
IR-blocking filter for webcams, Meade DSI etc.
|
| Baader Lowpass-IR-Filter 1 1/4" |
blocks nearly the complete spectrum of visible light. It is useful for planets with webcams
|
| Celestron Yellow-Filter 1 1/4" |
more contrast for the moon
|
|
| Various: |
div. dovetails for dual mount
Dew Shields
TS ADC Atmospheric Dispersion Corrector
TS-Optics 2" Barlow Lens 2.5x APO
TeleVue 2x Barlow
Imagemate 4x Barlow
2" Diagonal Mirrors
Polar Alignment Viewfinder Polar-Mate for Wedges
|
| Eyepieces: |
Zeiss Okular Vario D 15-45x / 20-60x (8-25)
2" Skywatcher LET 28mmm 56°
2" TS WA 32mm 70°
2" GSO SuperView 42mm 60°
Meade SP 26mm
Meade SP 26mm
Meade 12mm Illuminated Reticle Eyepiece
and many others
|
|
|

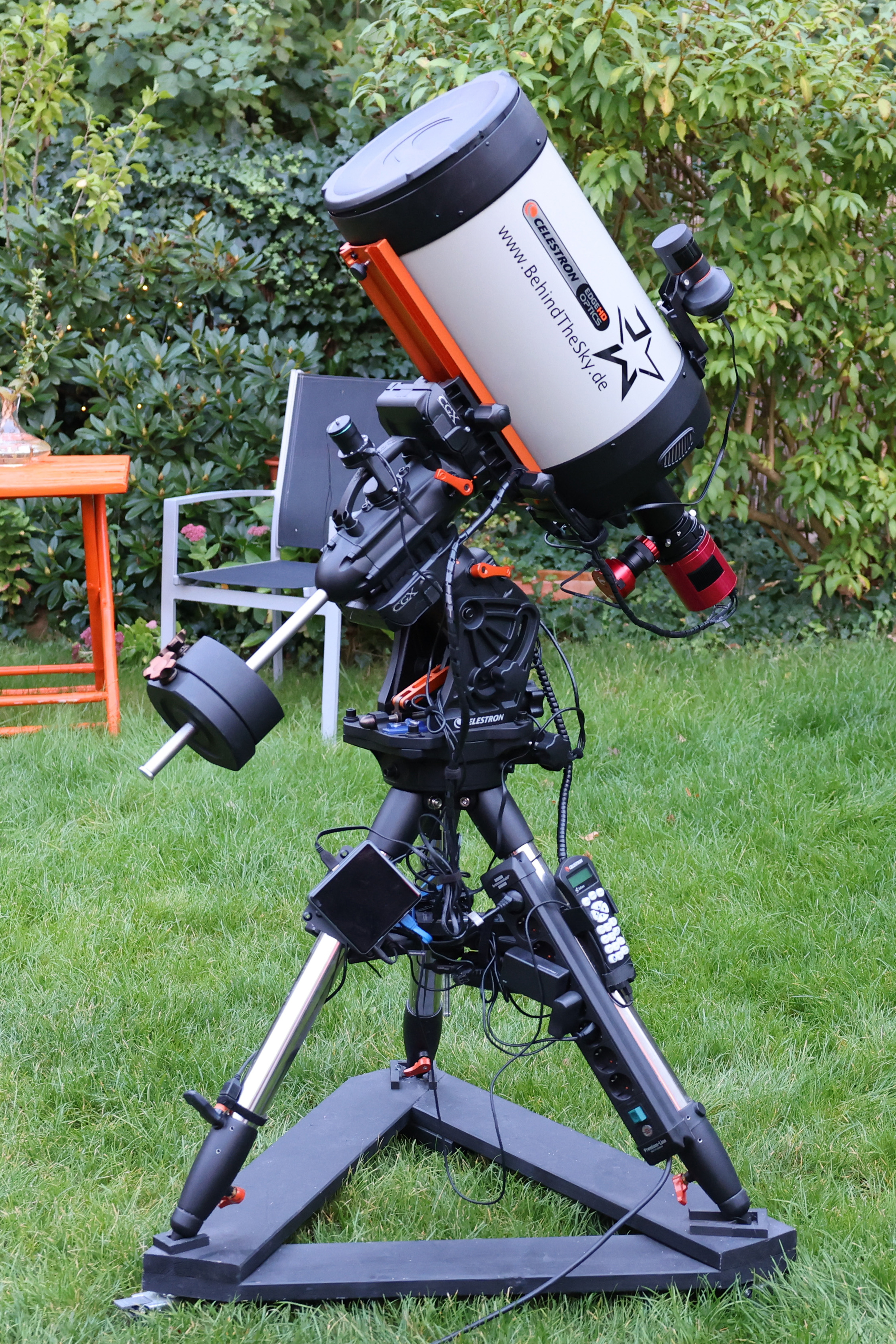

Berlin, 22.09.2023 New Celestron EdgeHD 1100 (11", f/10, 2800mm) on Celestron CGX, Camera ASI 2600MCPro
|
|
|

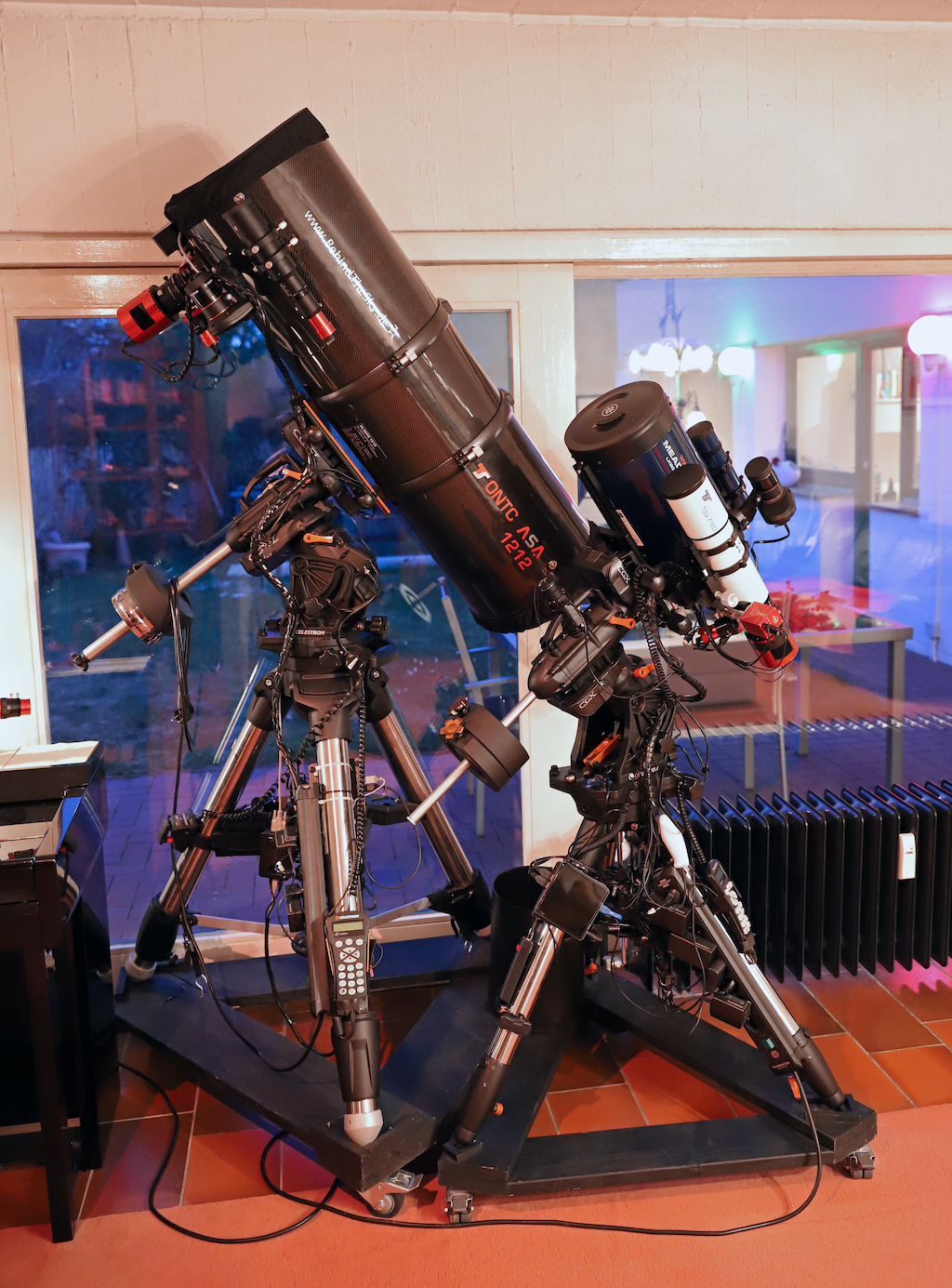

Berlin, 06.03.2023 A picture with both main mounts. The CGX-L for the Newton and the CGX for the SC and the APO
|
|
|

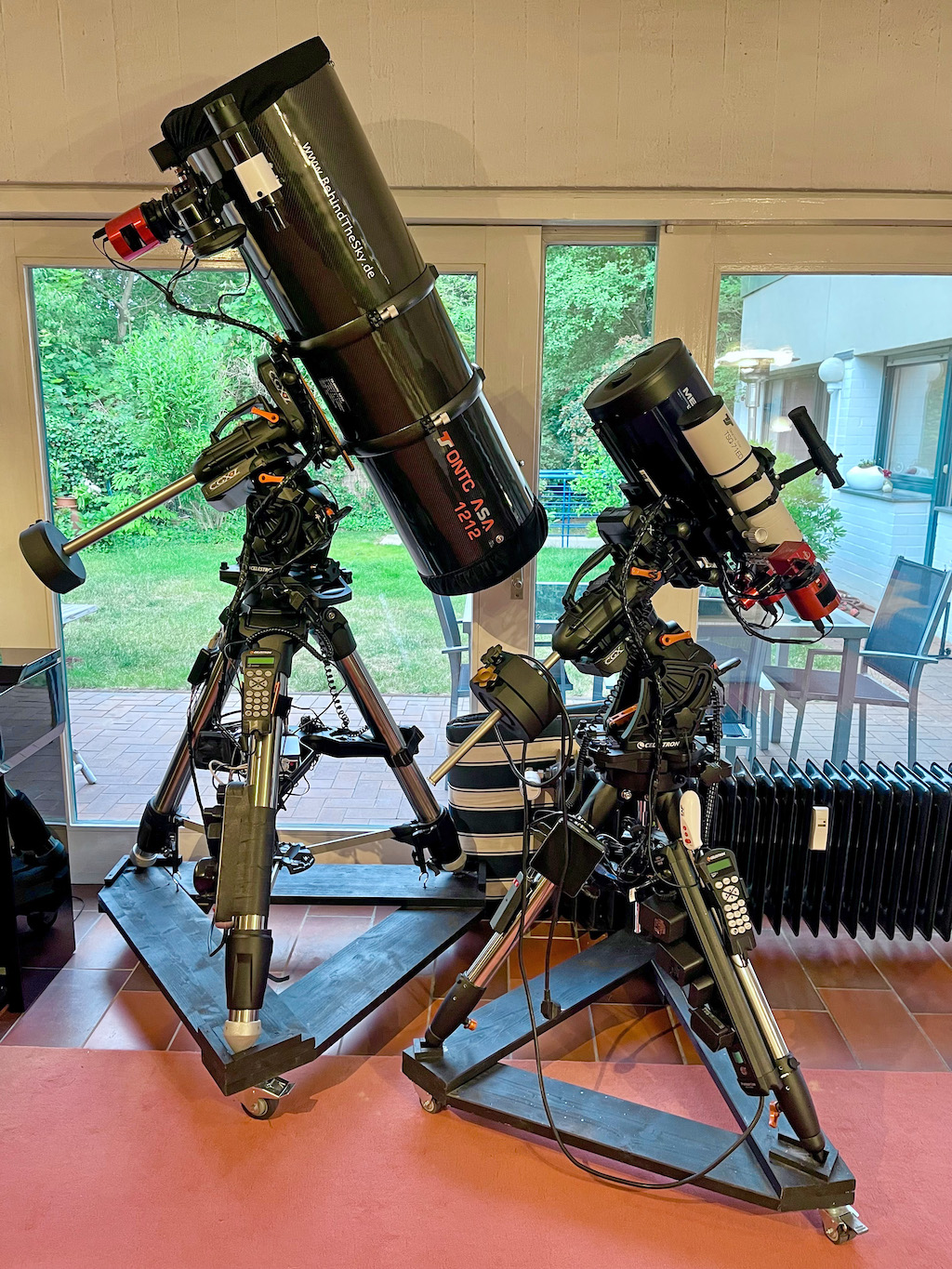

Berlin, 23.06.2022 A picture with both main mounts. The LX75 is now primarily used for travel
Berlin, 23.06.2022 A picture with both main mounts. The LX75 is now primarily used for travel
|
|
|

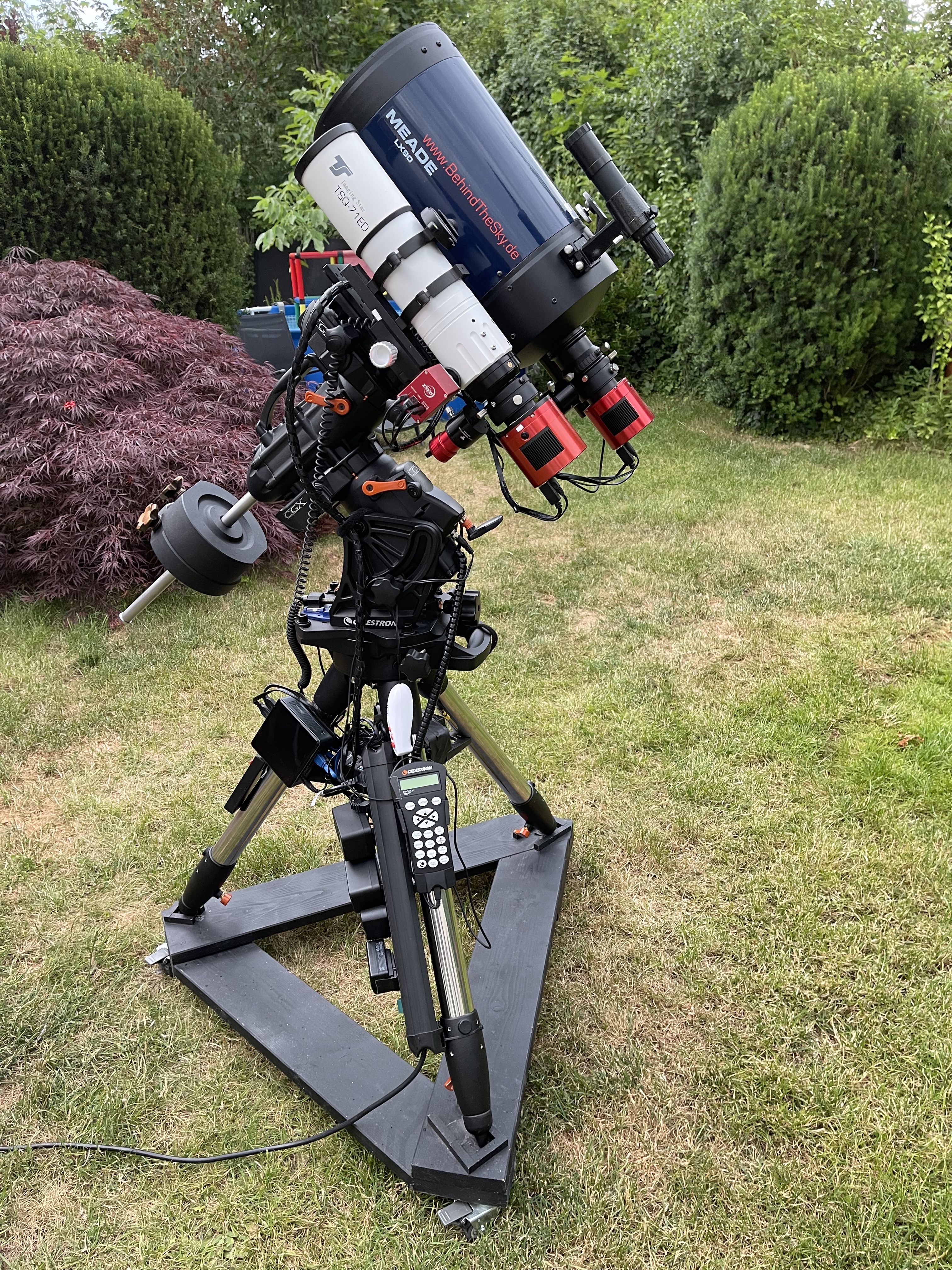

Berlin, 23.06.2022 The Dual-Mount for the LX90 and TSQ-71ED ist now on the Celestron CGX. The tripod was shortened by 12cm so that it becomes narrower and fits on the caddy
Berlin, 23.06.2022 The Dual-Mount for the LX90 and TSQ-71ED ist now on the Celestron CGX. The tripod was shortened by 12cm so that it becomes narrower and fits on the caddy
|
d
|
|

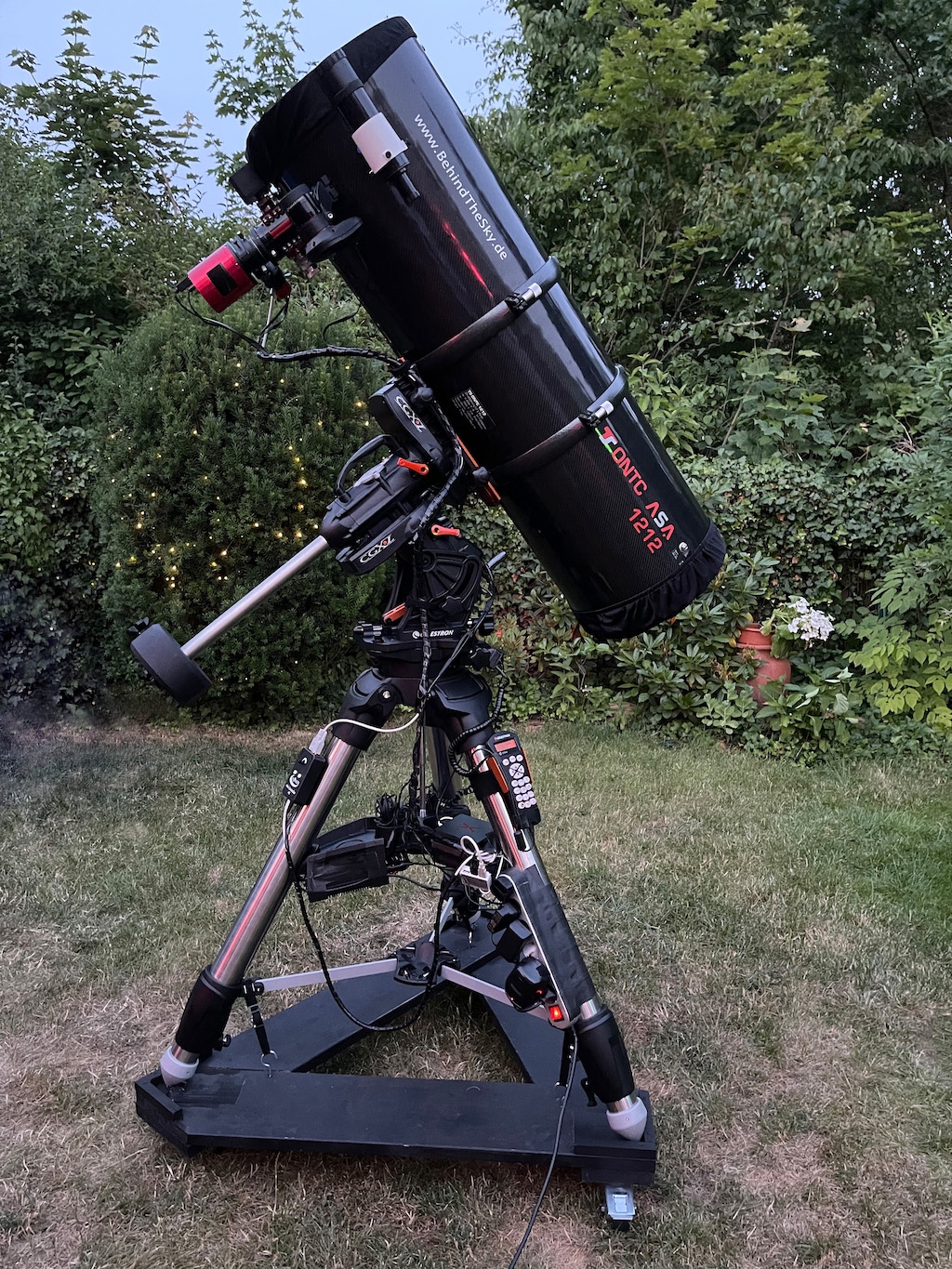

Berlin, 18.06.2022 The 12" ONTC is now operating on a new Celestron CGX-L. The tripod was shortened by 12cm so that it becomes narrower and fits back on the caddy

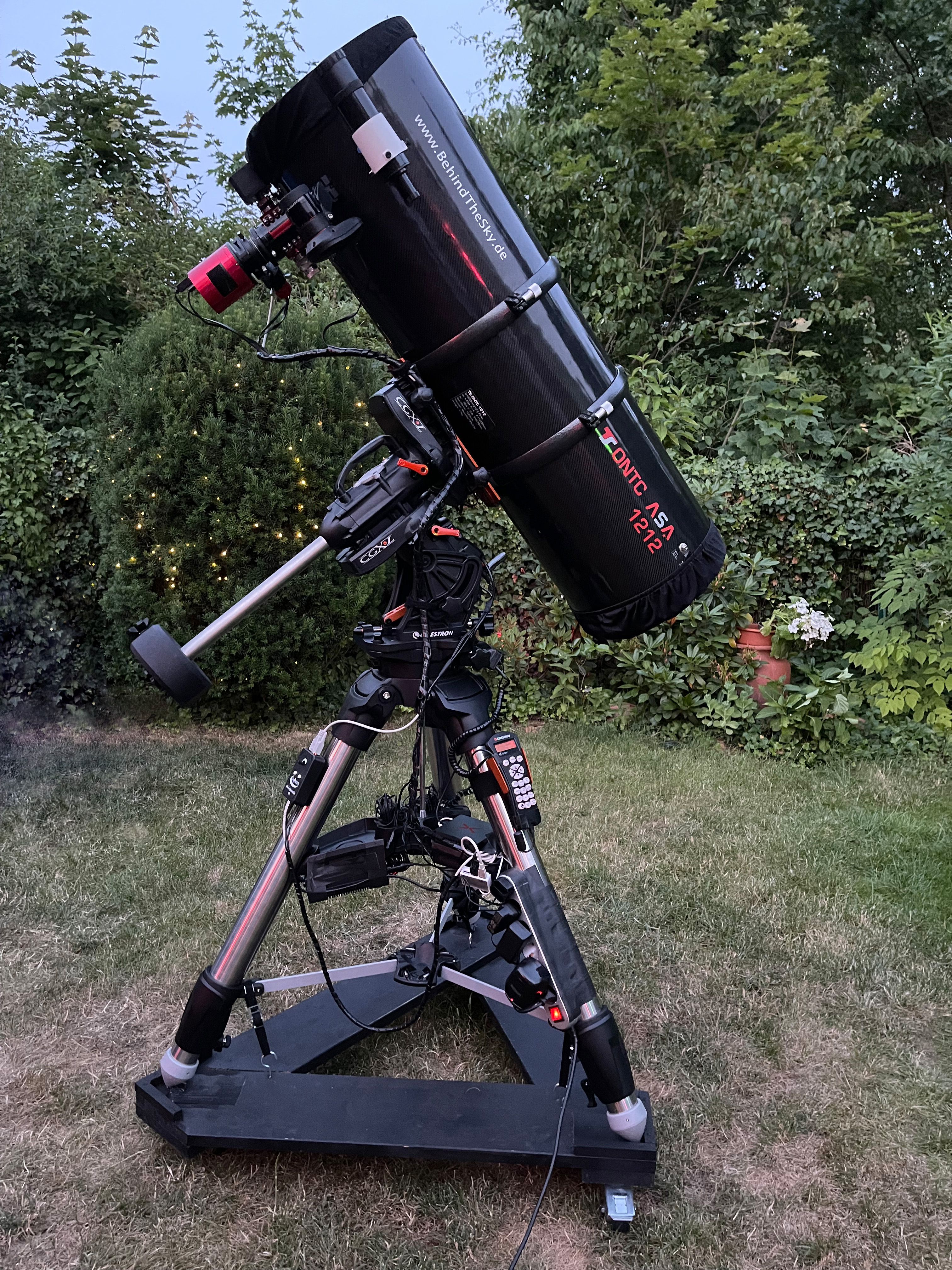

Berlin, 18.06.2022 The 12" ONTC is now operating on a new Celestron CGX-L
|
|
|

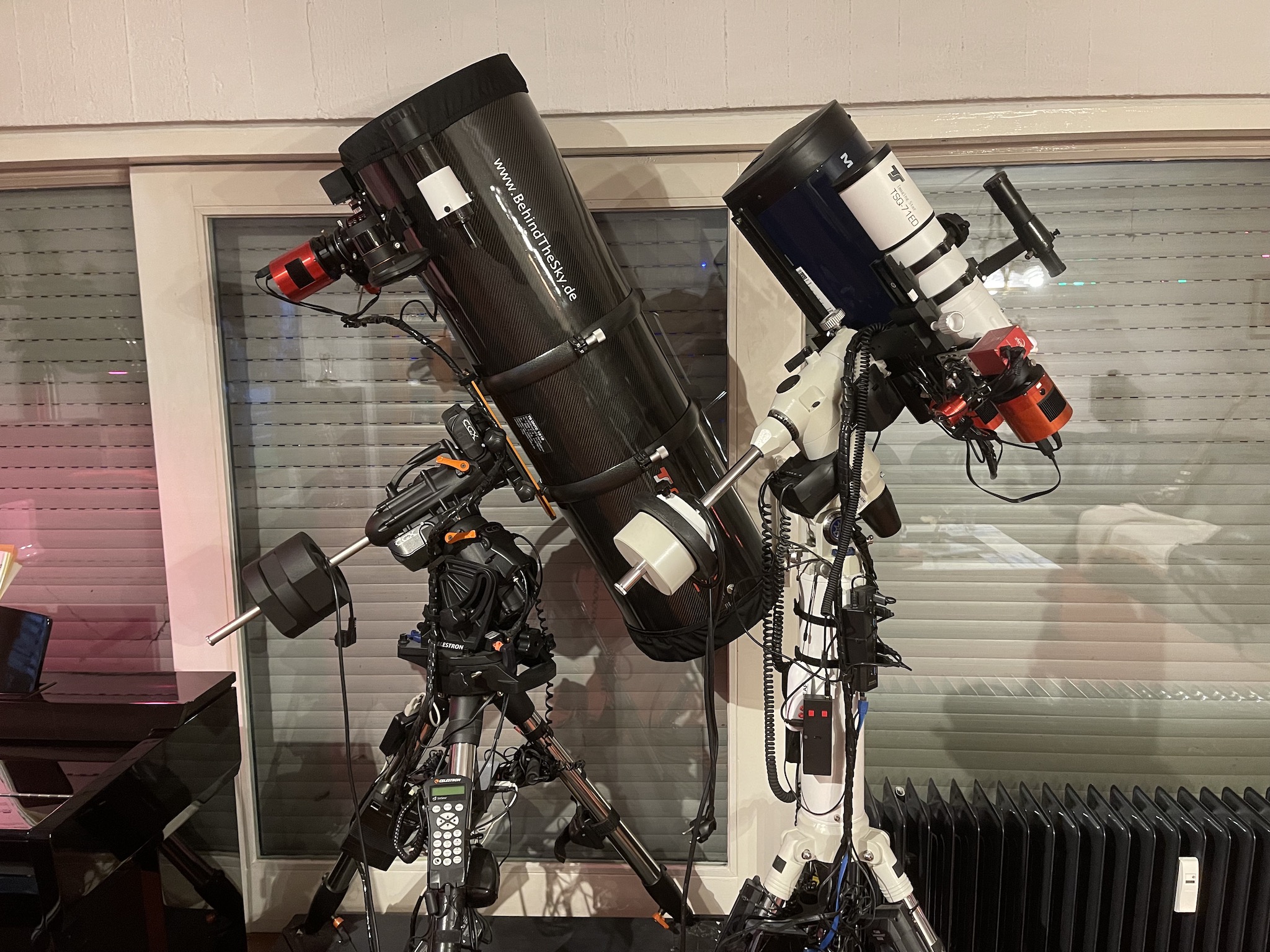

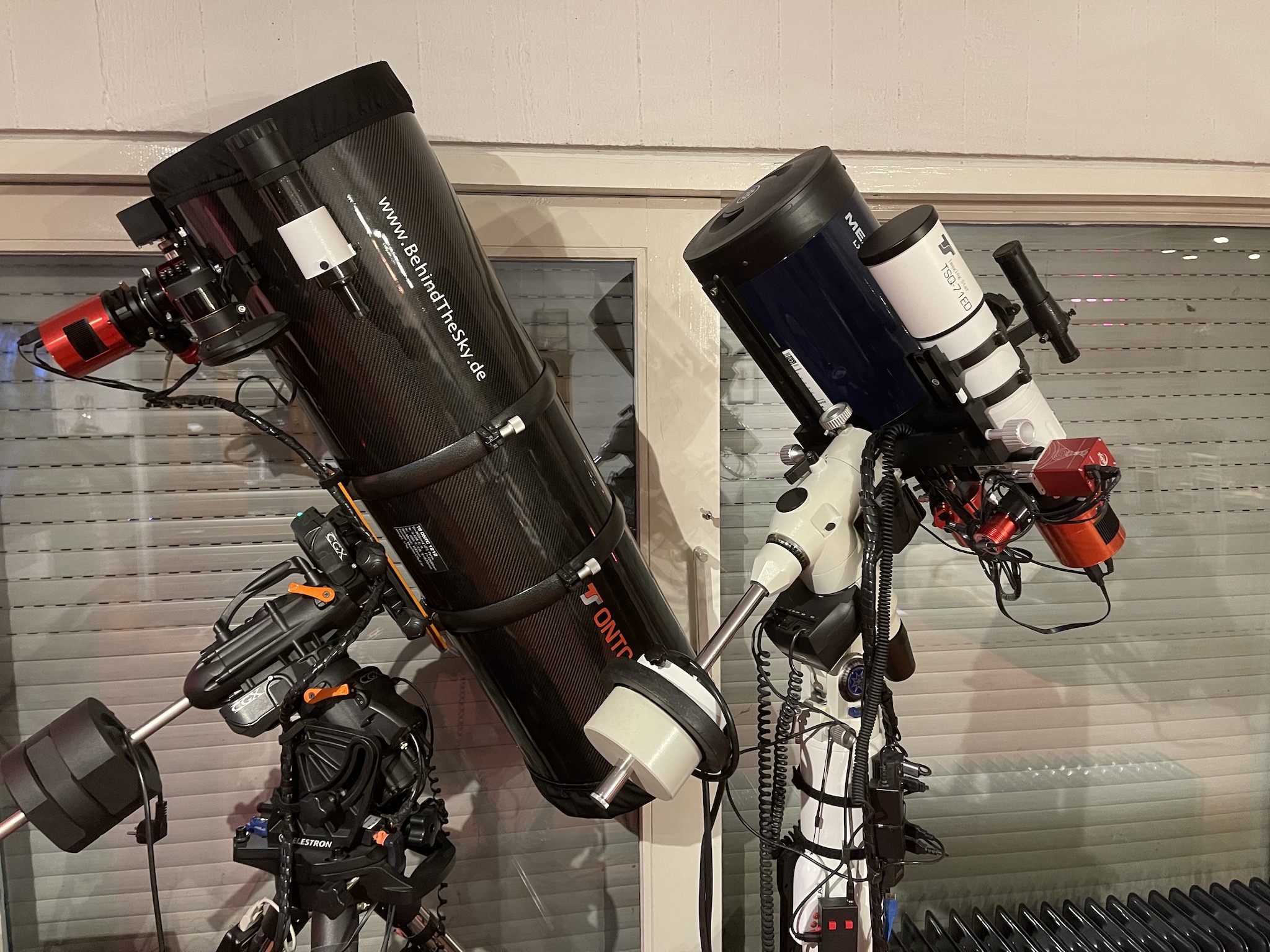

Berlin, 15.12.2021 New Configuration with ASI 2600MC on 12" ONTC, ASI183MC on LX90 and ASI071MC on TS TSQ-71ED, LX90 with JMI-Autofocuser
Berlin, 15.12.2021 New Configuration with ASI 2600MC on 12" ONTC, ASI183MC on LX90 and ASI071MC on TS TSQ-71ED, LX90 with JMI-Autofocuser
|
|
|
Berlin, 15.12.2021 New Configuration with ASI 2600MC on 12" ONTC, ASI183MC on LX90 and ASI071MC on TS TSQ-71ED, LX90 with JMI-Autofocuser
Berlin, 15.12.2021 New Configuration with ASI 2600MC on 12" ONTC, ASI183MC on LX90 and ASI071MC on TS TSQ-71ED, LX90 with JMI-Autofocuser
|
|
|

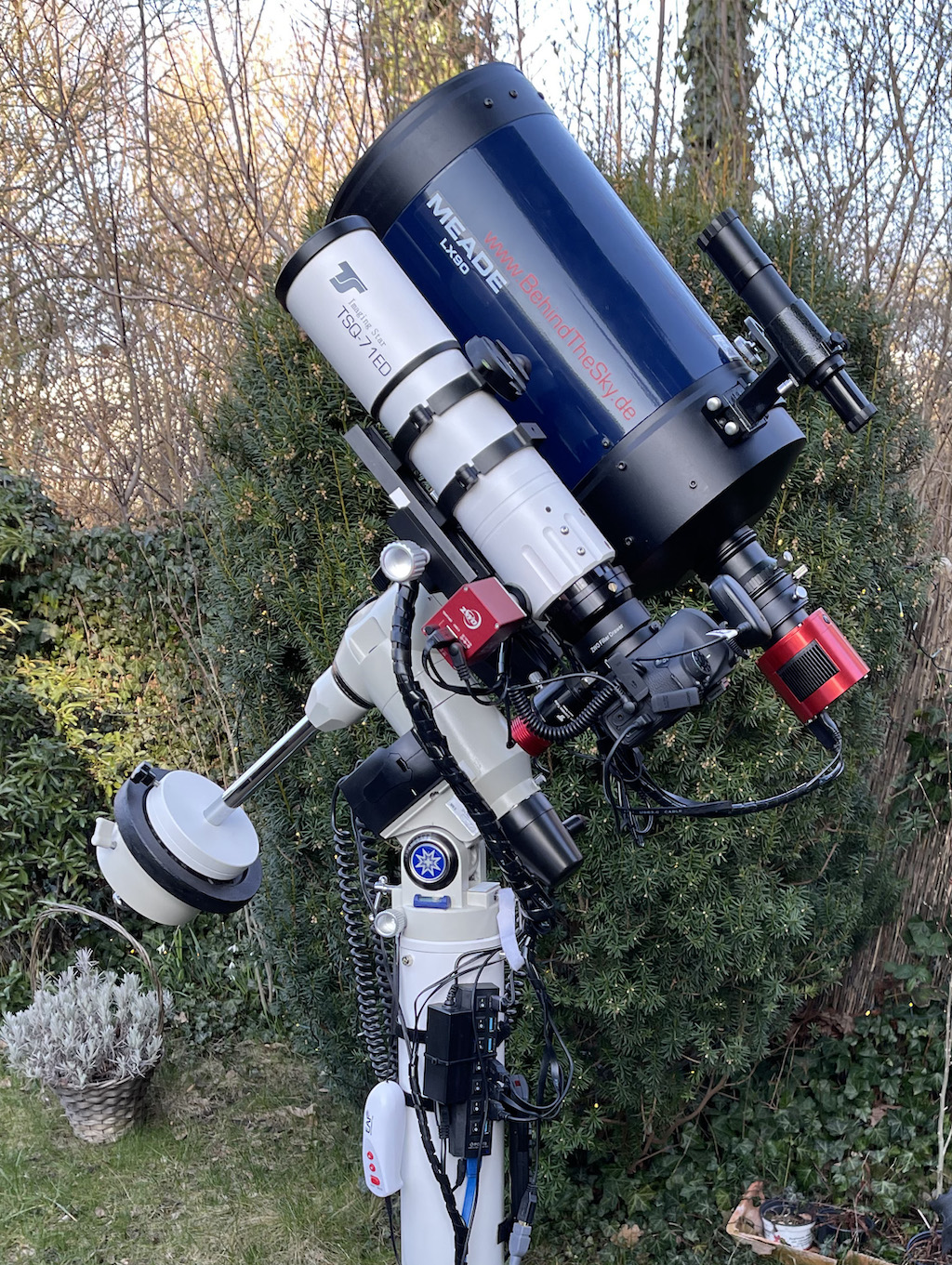

TS TSQ-71ED 71mm f/4.9 (347mm) & Meade LX90
Berlin, 30.03. New Configuration with the Apo and LX90 together on LXD75. Here with Canon 6Da and ASI 183MC Pro
|
|
|

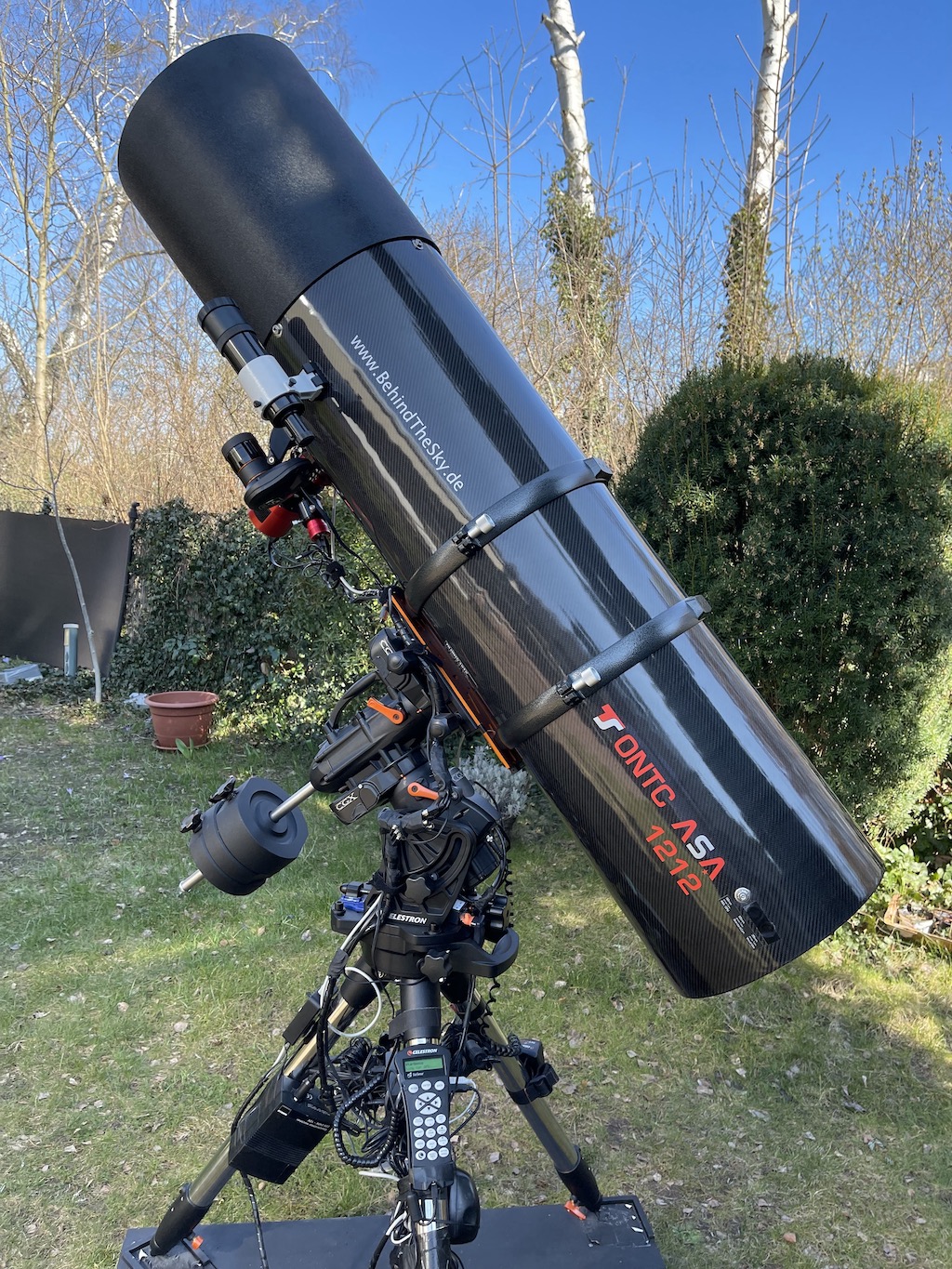

12" ONTC-Newton f/2.8 with ASI071 on CGX
Berlin, 30.03
|
|
|
12" ONTC-Newton f/2.8 with ASI071 on CGX

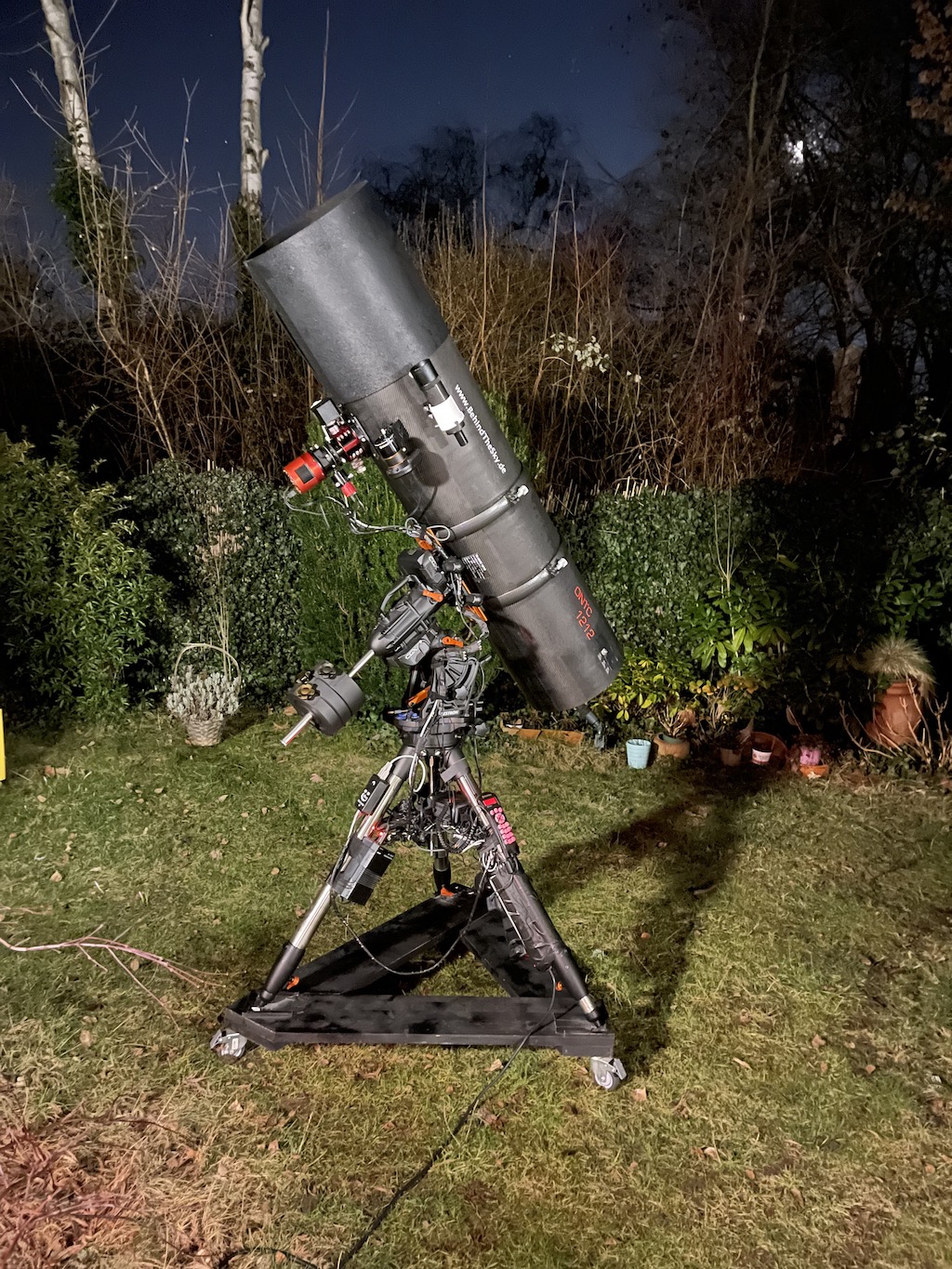

Berlin, 03.03 and 05.03.2021, first try in 2021 with the new Hutech IDAS-NB1-Filter. This filter seems to work good for nebulas (O-III and H-Alpha). Galaxies and stars tend to turn a little bit to red
|
|
|
12" ONTC-Newton f/2.8 with ASI071 on CGX

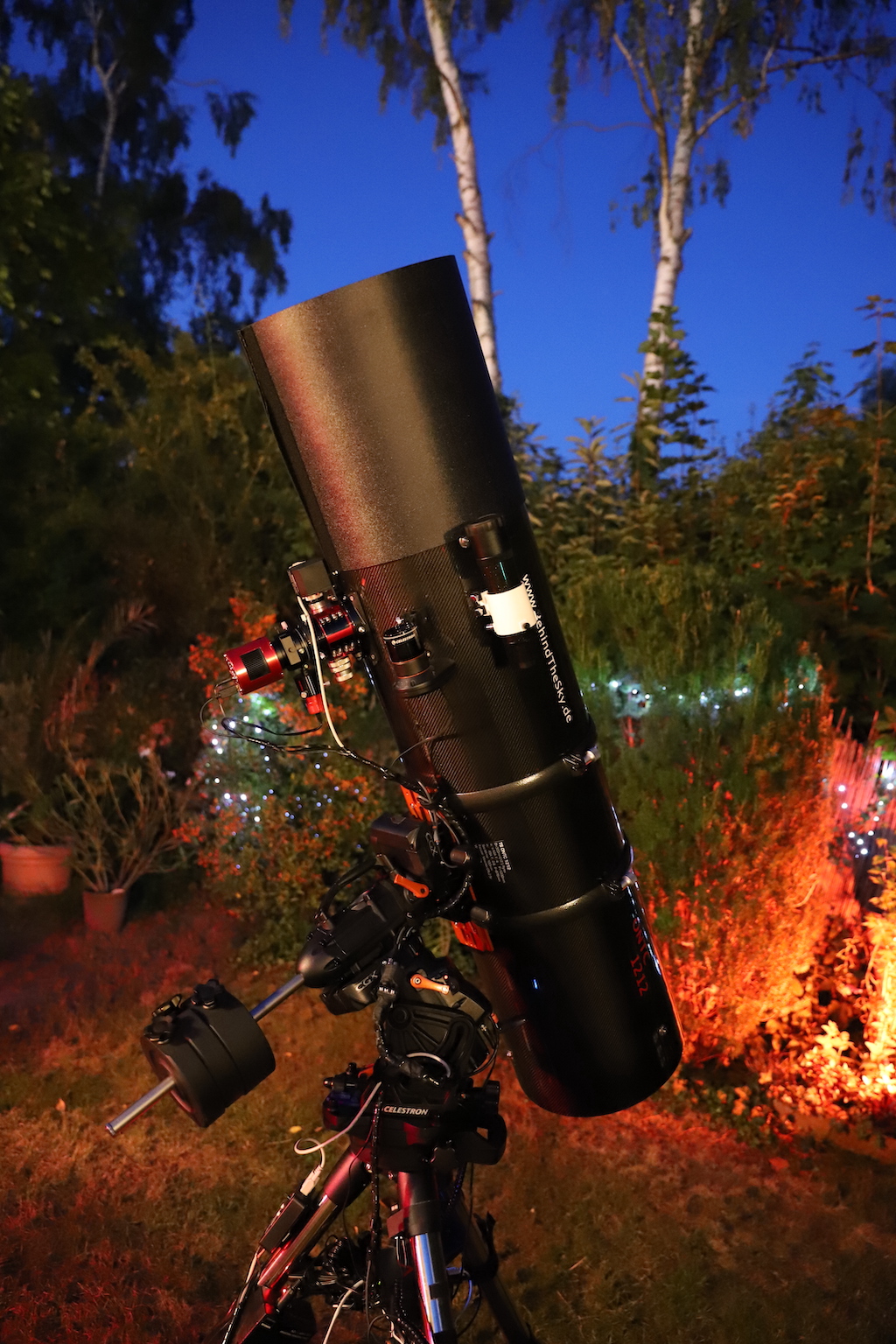

Berlin 2019. 12" ONTC-Newton 12 ready for work with ASI071MCPro, Moonlite-Motorfocuser, Off-Axis-Guiding with ASI290. Celestron-CGX-Mount with Starsense-Module, Sky Portal WiFi Module, GPS-Module, Finderscope
The CGX ist equipped with a small Windows-Computer for Guiding (PHD2), Capturing (ASICP), Motorfocuser, etc. The connection is realized over RDP and Nextcloud (WLAN or Ethernet).
|
|
|
|
12" ONTC-Newton f/2.8 with ASI071 on CGX

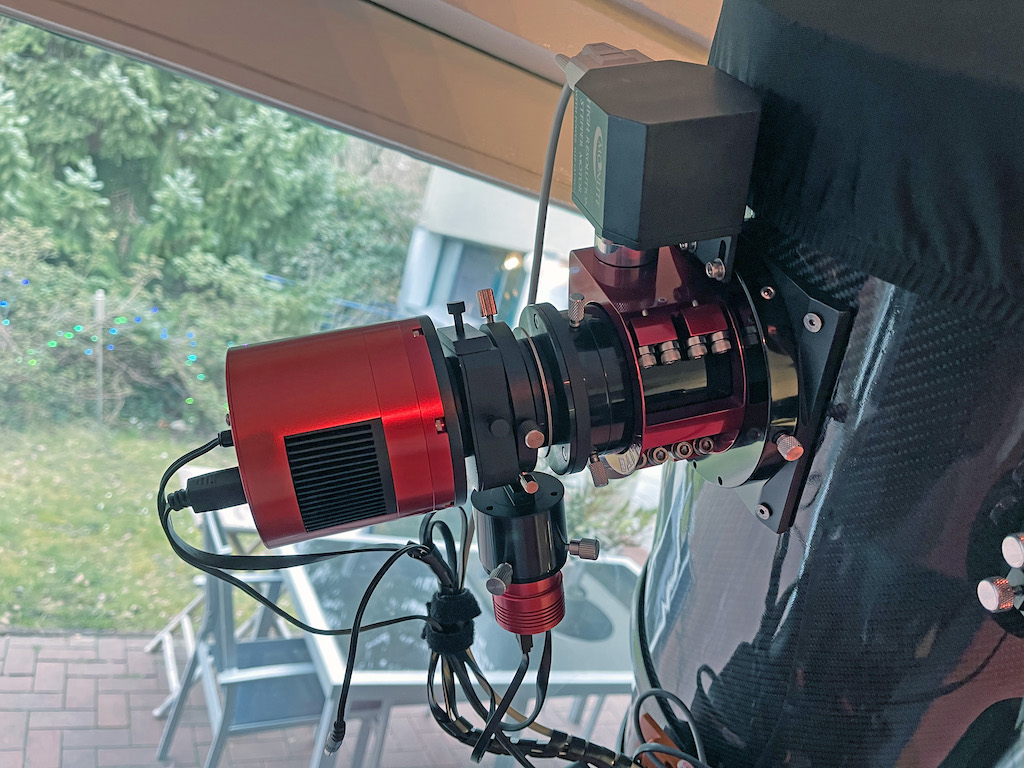

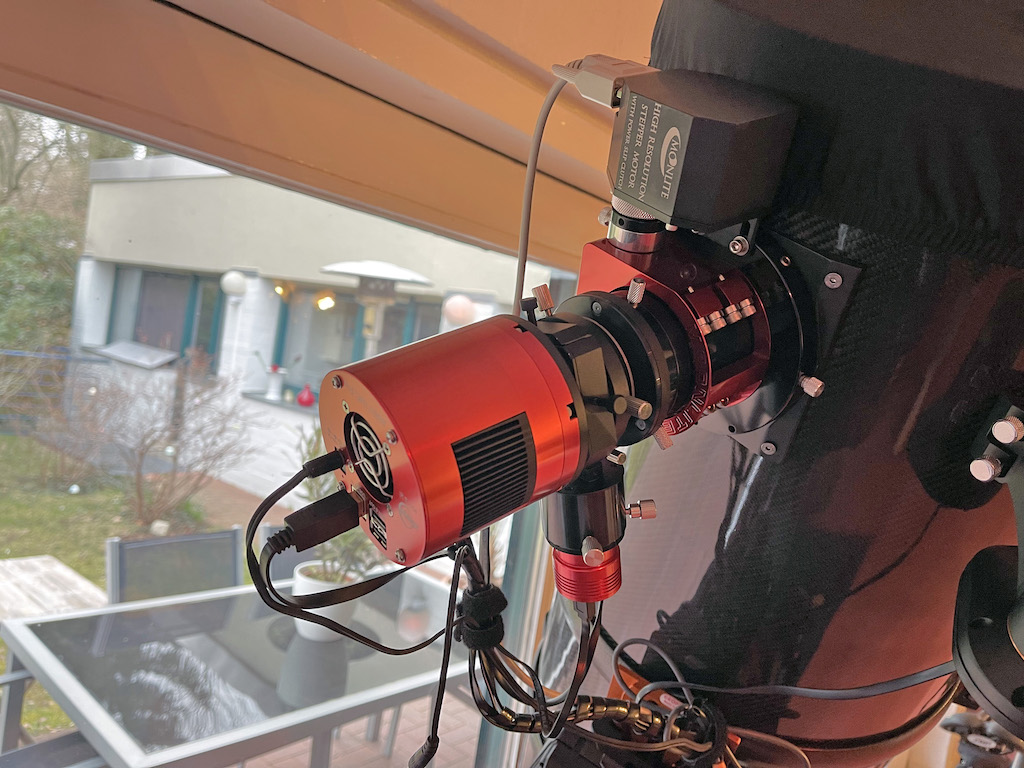

Moonlite CRL2,5-Focuser with Moonlite-Motorfocuser, ASA-Corrector, TS Off-Axis Guider(TSOAG9) with ASI290-Mini as Guiding-Camera, TS Filter Changer(T2) and the ASI071MC Pro as Main-Camera
|
|
|
12" ONTC-Newton f/2.8 with ASI071 on CGX

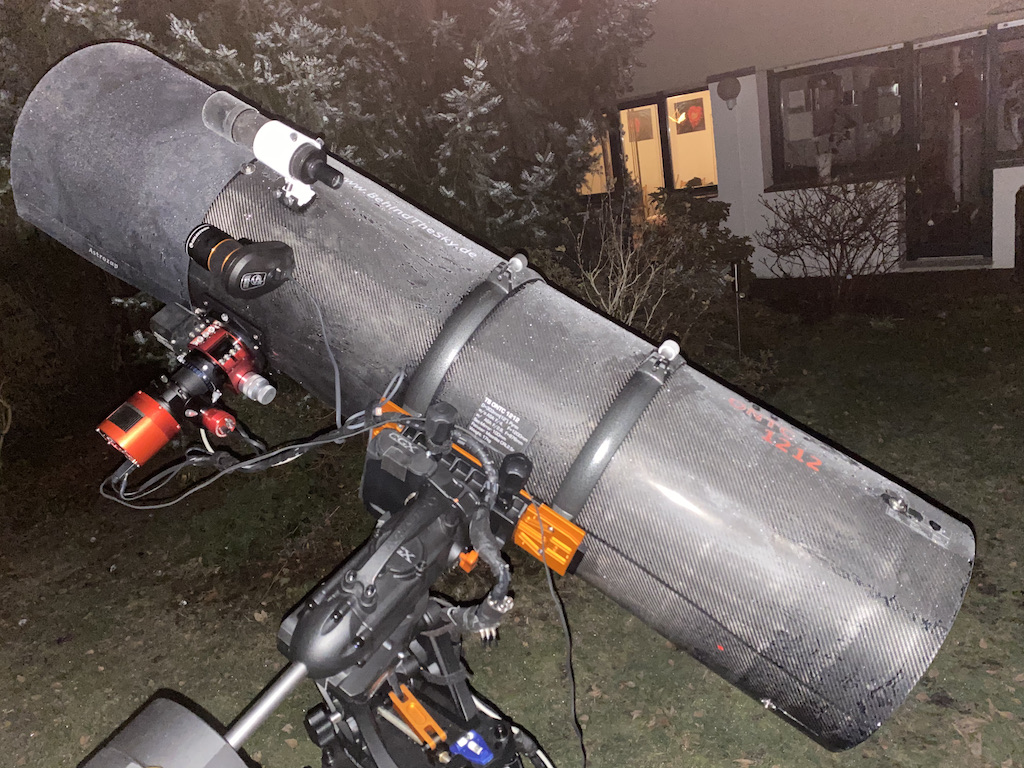

Berlin 2019. Ice on the Telescope on night
|
|
|

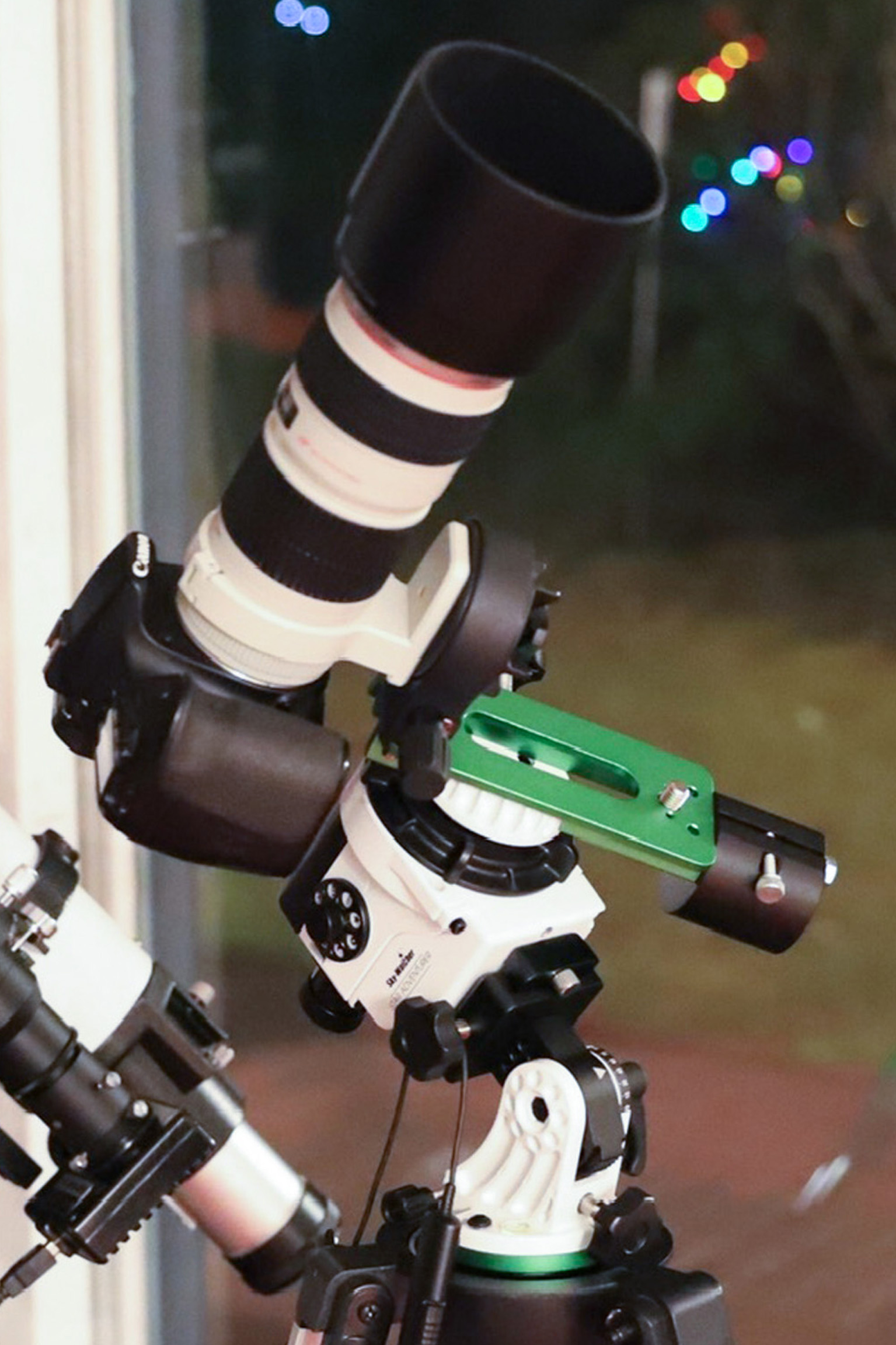

Skywatcher Adventurer with Canon 6Da and Canon EF 70-200 f/4
Small mount for traveling
|
|
|
|
TS TSQ-71ED 71mm f/4.9 (347mm) Quadruplet Flatfield Refractor

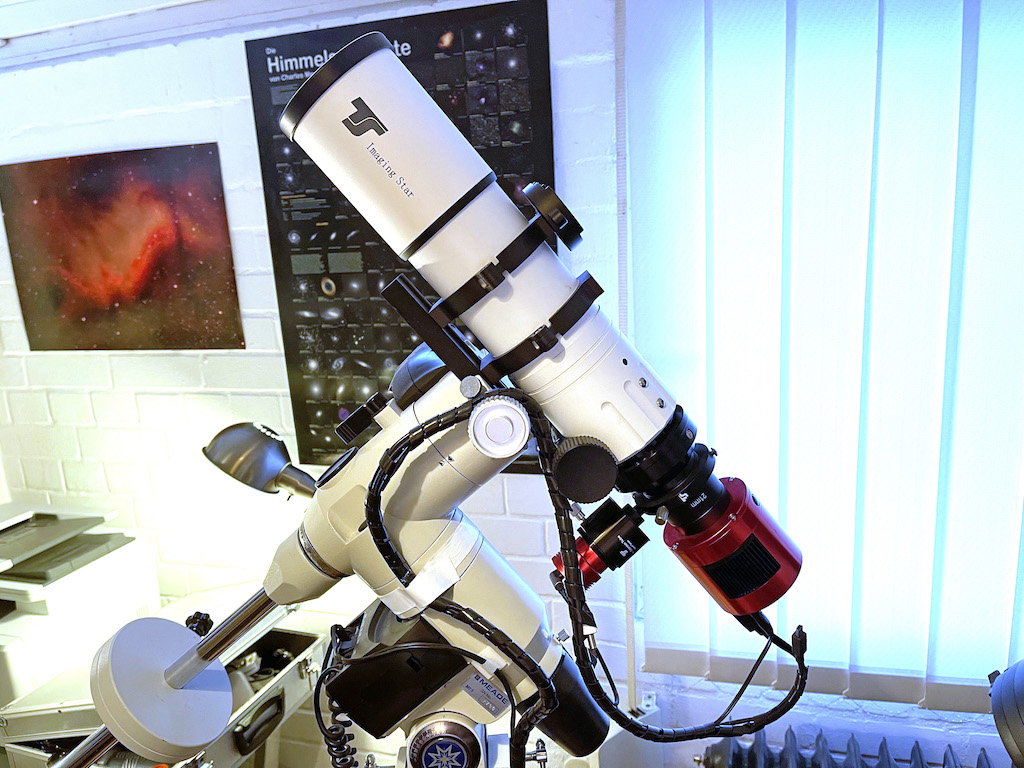

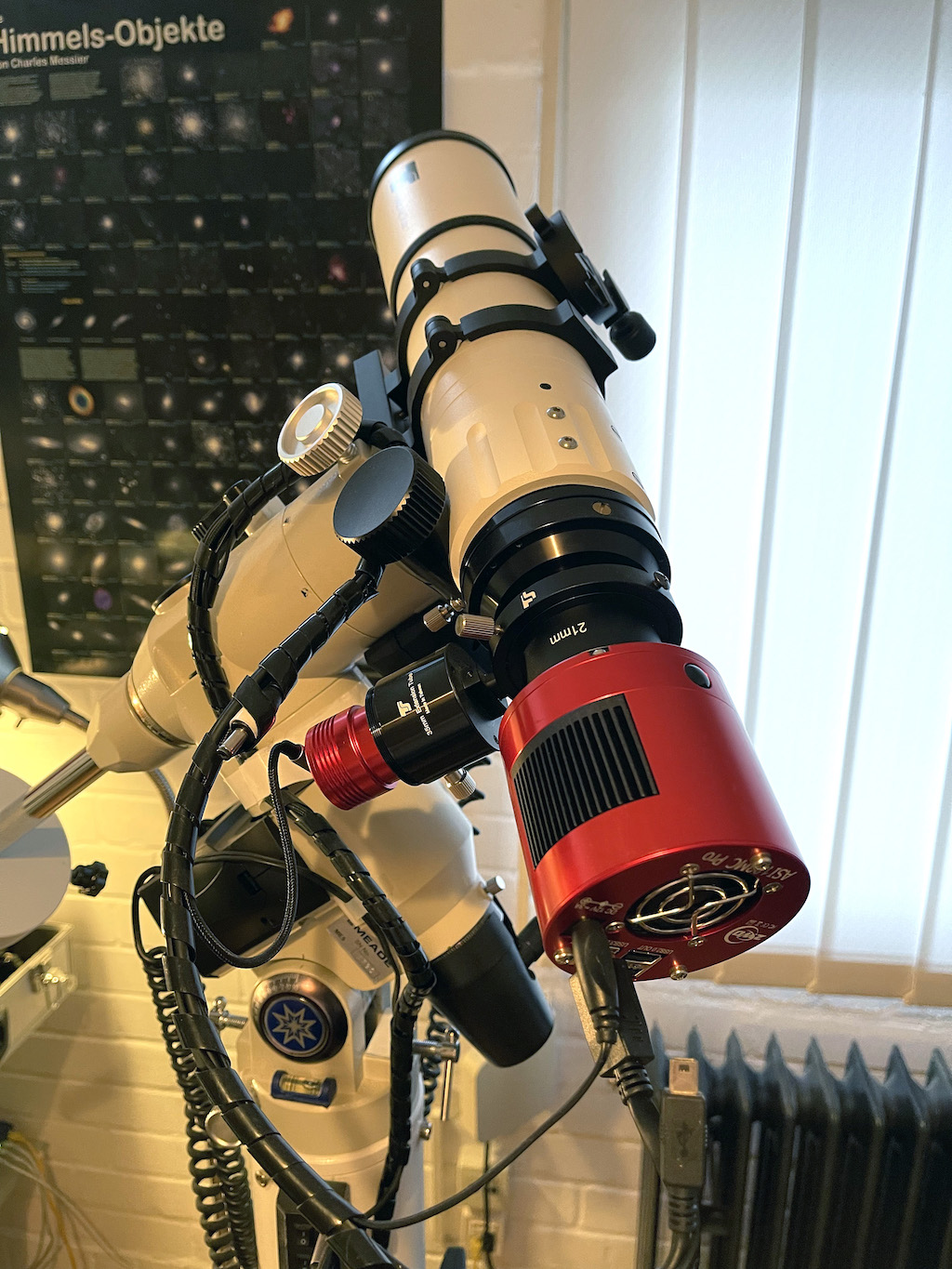

APO-Refractor TSQ-71ED with ASI183MC Pro, Offaxis-Guiding with ASI120Mni on Mount Meade LX90.
The mount ist equipped with a small Windows-Computer for Guiding (PHD2), Capturing (ASICP), etc. The connection is realized over RDP and Nextcloud (WLAN or Ethernet).
|
|
|

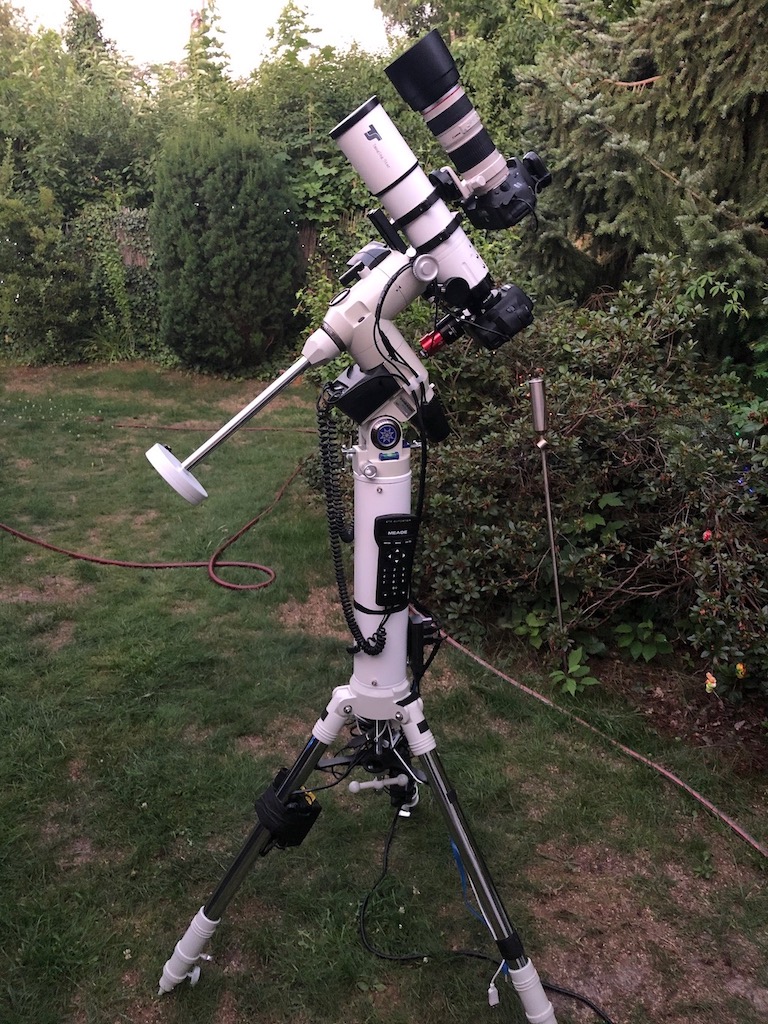

TS TSQ-71ED 71mm f/4.9 (347mm) Quadruplet Flatfield Refractor and Canon EF70-200

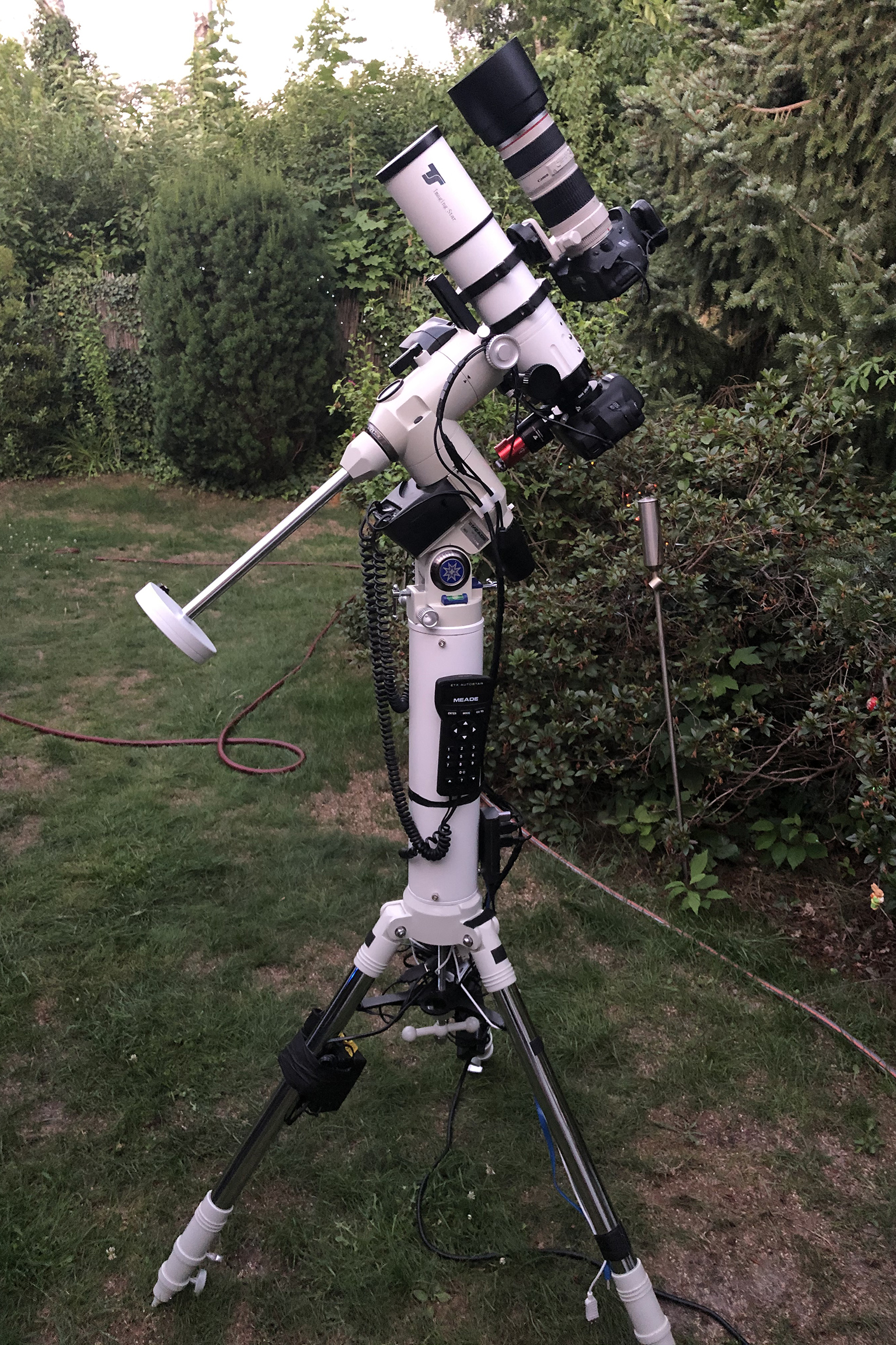

Another configuration: APO-Refractor TSQ-71ED with Canon 6Da for more field and on top then Canon EF 70-200 f/4 with Canon EOS 600Da
|
|
|
|
TS TSQ-71ED 71mm f/4.9 (347mm) Quadruplet Flatfield Refracto with Canon 6Da

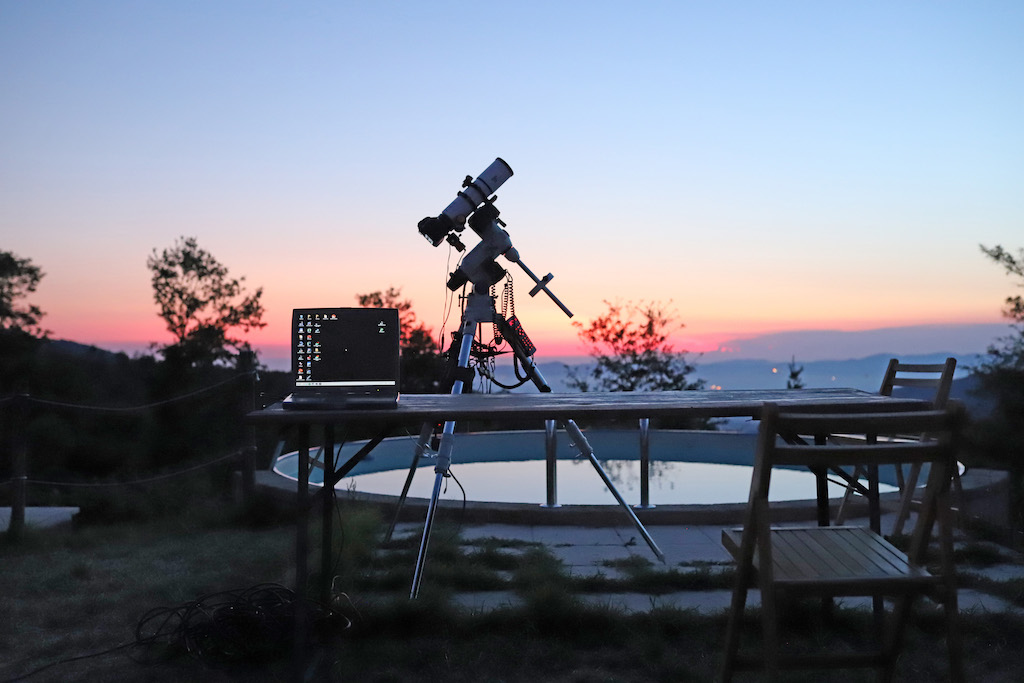

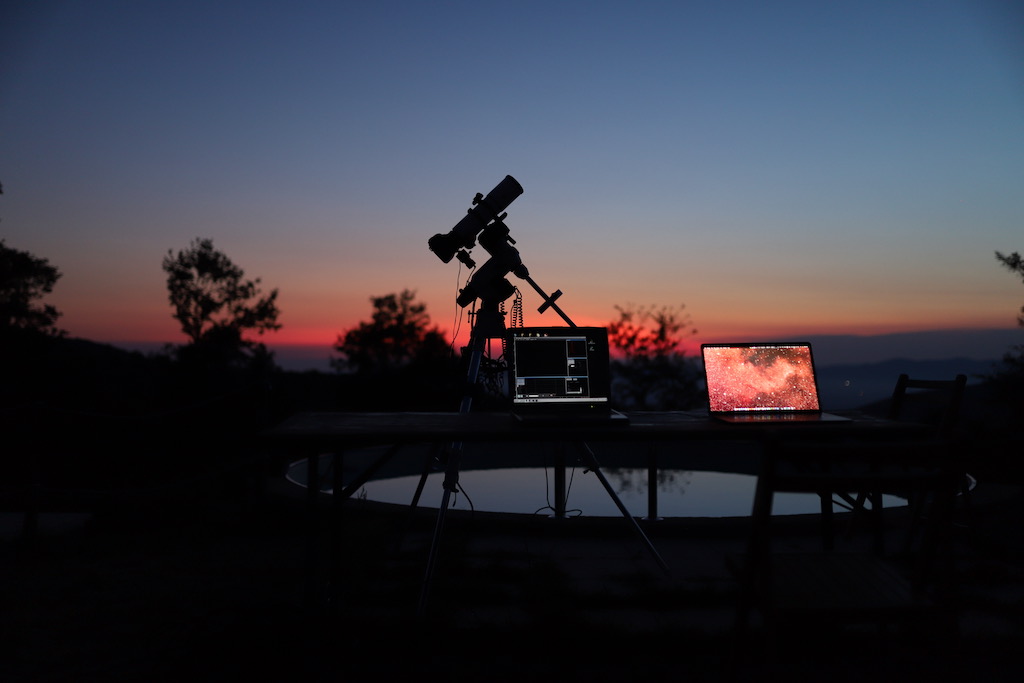

Tuscany 2019. The TS TSQ-71ED was used with the Canon 6Da (to photograph larger objects like Andromeda).
|
|
|
|
|
|

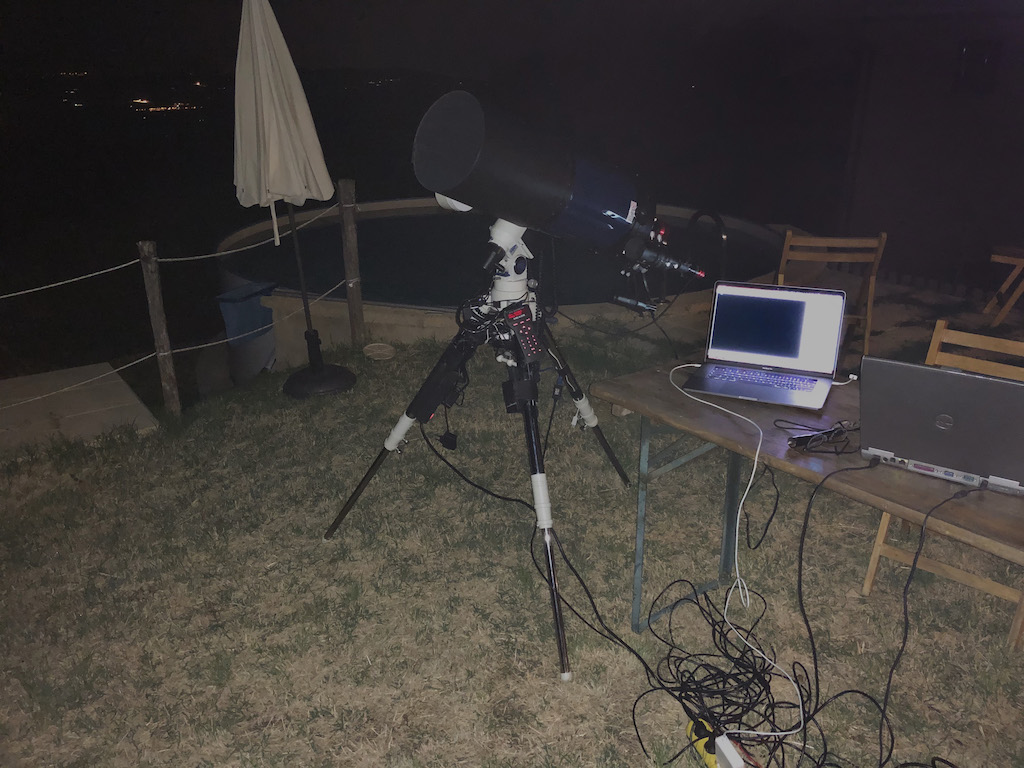

8" Meade LX90 Schmidt Cassegrain on LXD75

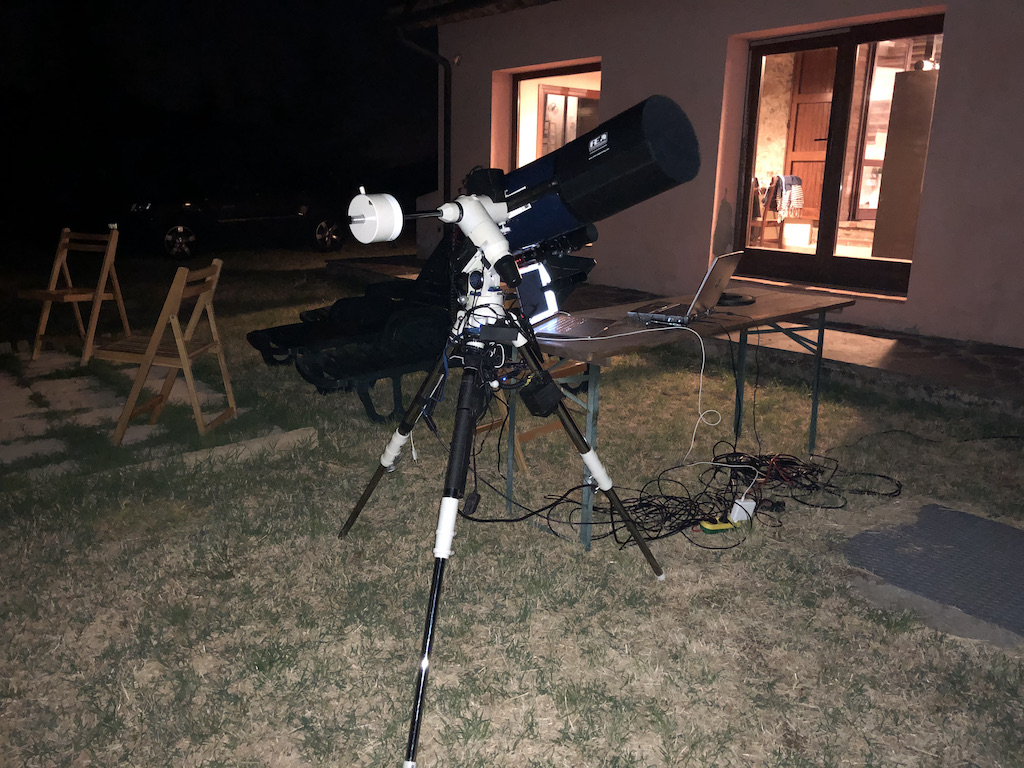

8" Meade LX90 Schmidt Cassegrain on LXD75 in the mountians of the tuscany 2019. This configuration was used to photograph Saturn und Jupiter.
The Camera for stacking the many short images is a AS178MC
|
|
|
|
TS TSQ-71ED 71mm f/4.9 (347mm) Quadruplet Flatfield Refracto with Canon 6Da
Tuscany 2019. The TS TSQ-71ED was used with the Canon 6Da (to photograph larger objects like Andromeda).
|
|
|

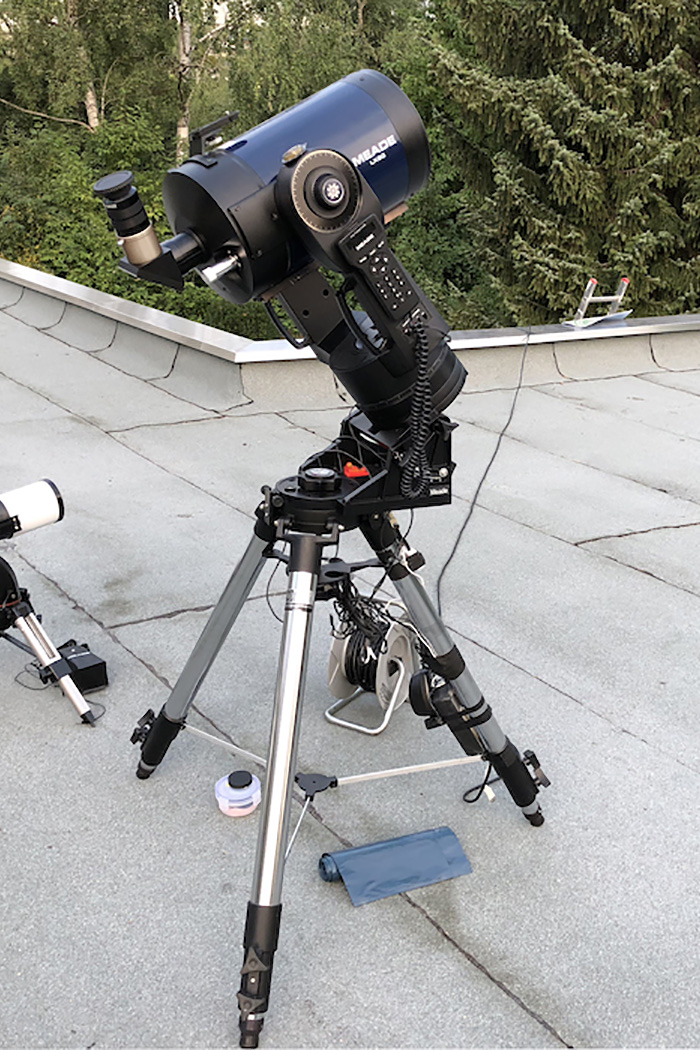

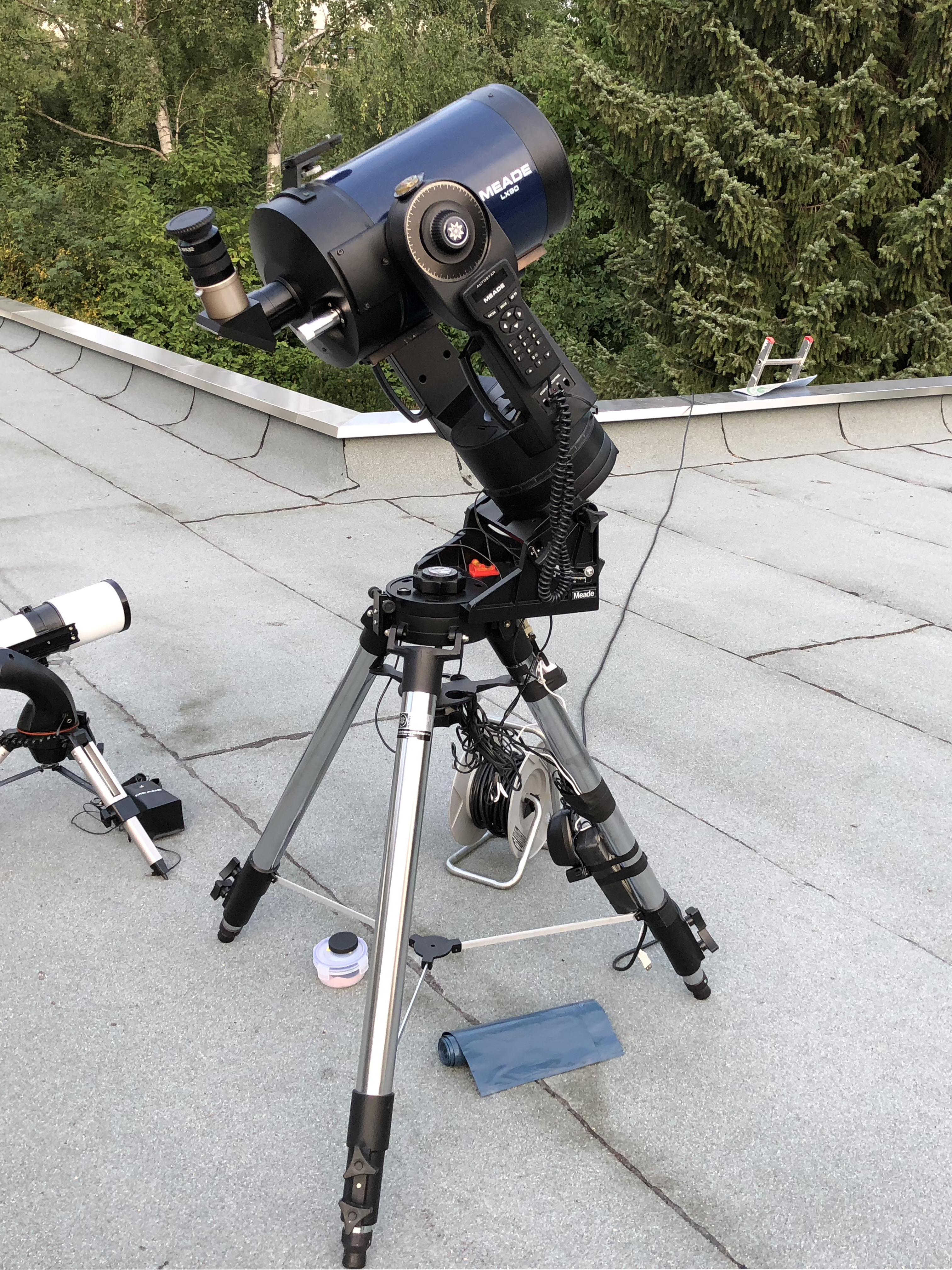

8" Meade LX90 Schmidt Cassegrain with original Mount+Wedge
Thi classical Configuration of the Meade LX90 was used to take pictures from the blood-moon in 2018. As Camera I used the Canon 600Da. This was the last time I use the original Meade-mount for the LX90. Later I used the LX90 only on the LXD75-mount.
The original equatorial mount with wedge (needed for photography) is very difficult to adjust and align.
|
|
|

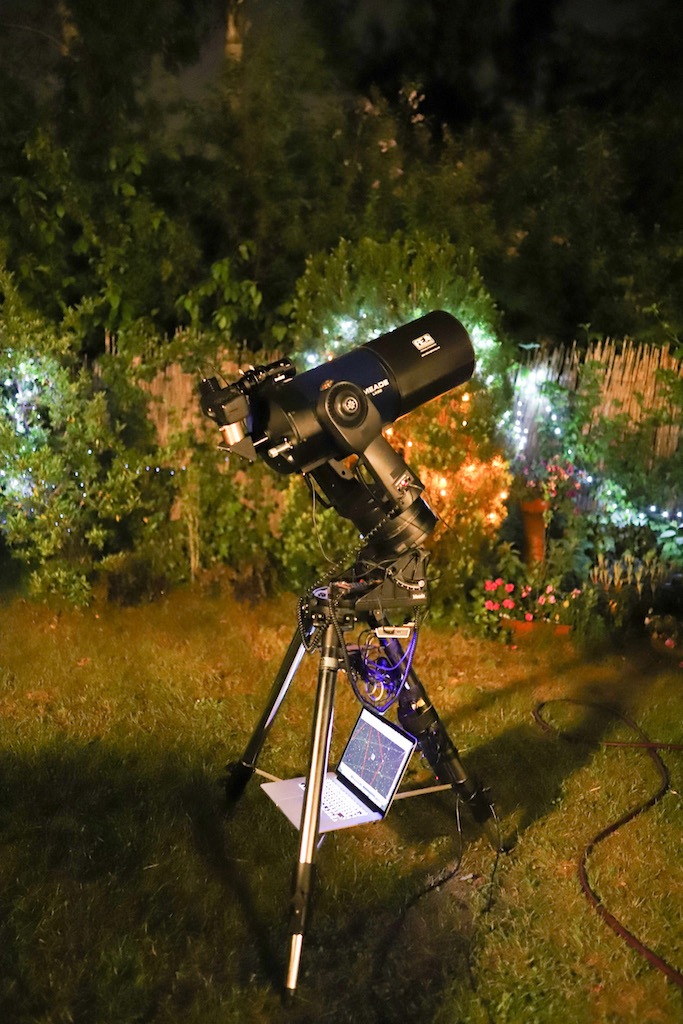

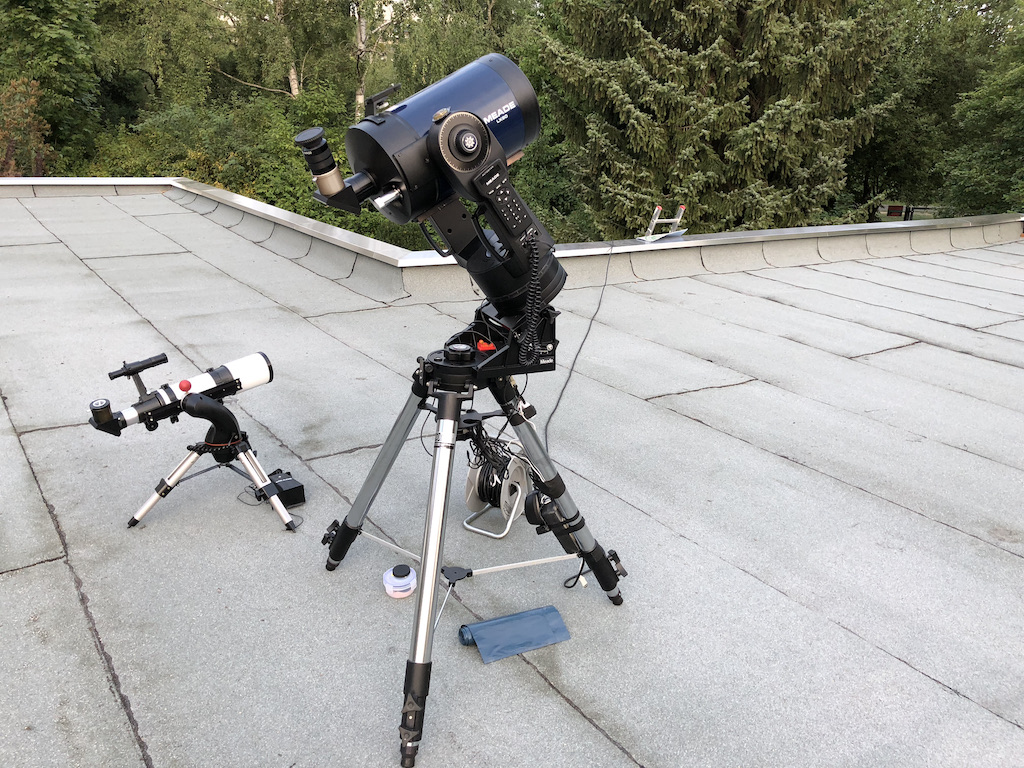

8" Meade LX90 Schmidt Cassegrain with original Mount+Wedge
The classical Configuration of the Meade LX90 with wedge in 2018. As Camera I used the Canon 600Da.
This original equatorial mount with wedge (needed for photography) is very difficult to adjust and align.
|
|
|
|
8" Newton Skywatcher Explorer 200PDS f/5

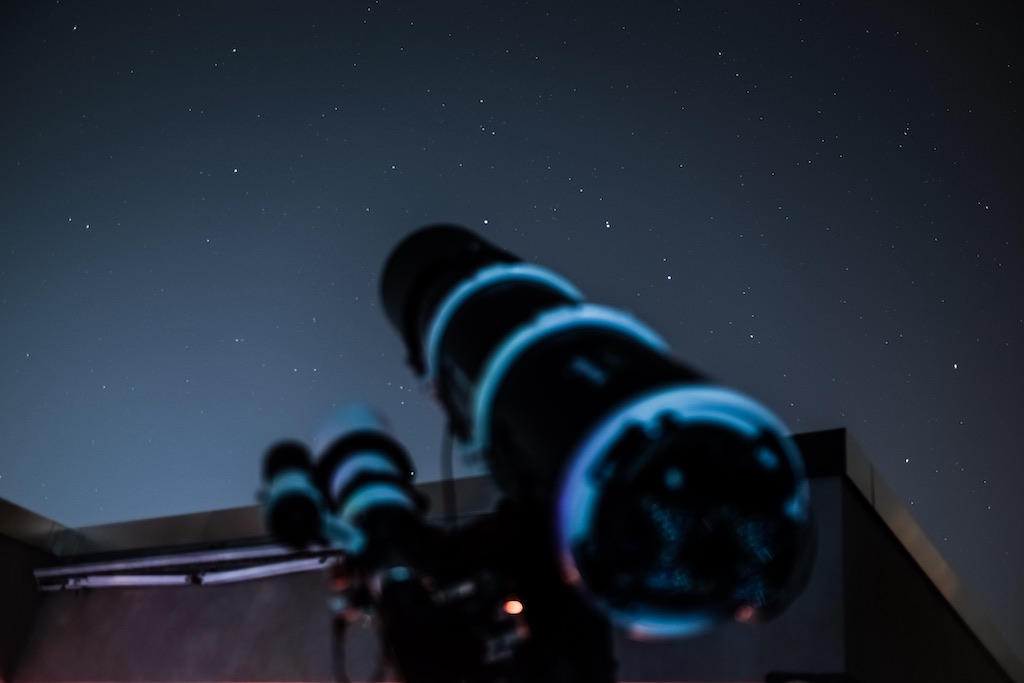

The Skywatcher 8" Newton together with my old 102mm RichField Refractor on a Celestron CGX Dual-Mount.
|
|
|
8" Newton Skywatcher Explorer 200PDS f/5
2018: The Skywatcher 8" Newton together on the Meade LXD75. This configuration was the first (successfully) try after more then 10 years.
At this moment the Canon 600D is unmodified (comes later) so is was difficult to picture red nebulas.
|
|
|

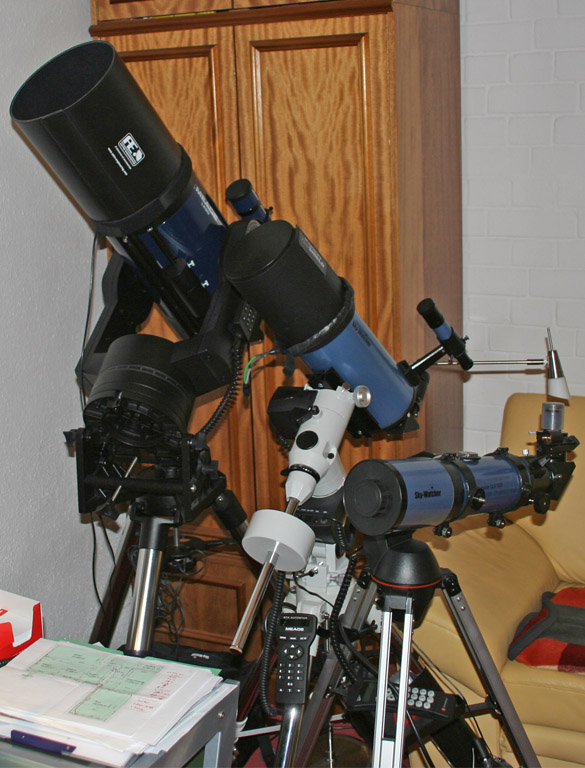

My first Equipment: Meade LX90, Skywatcher 100m f/5, 172mm Maksutov
2003-2005: The first equipment: Meade LX90 (here already with wedge), Skywatcher RichField Refractor 102/500mm and Skywatcher Maksutov SKM127.
|
|
|
8" Meade LX90 Schmidt Cassegrain with original Mount

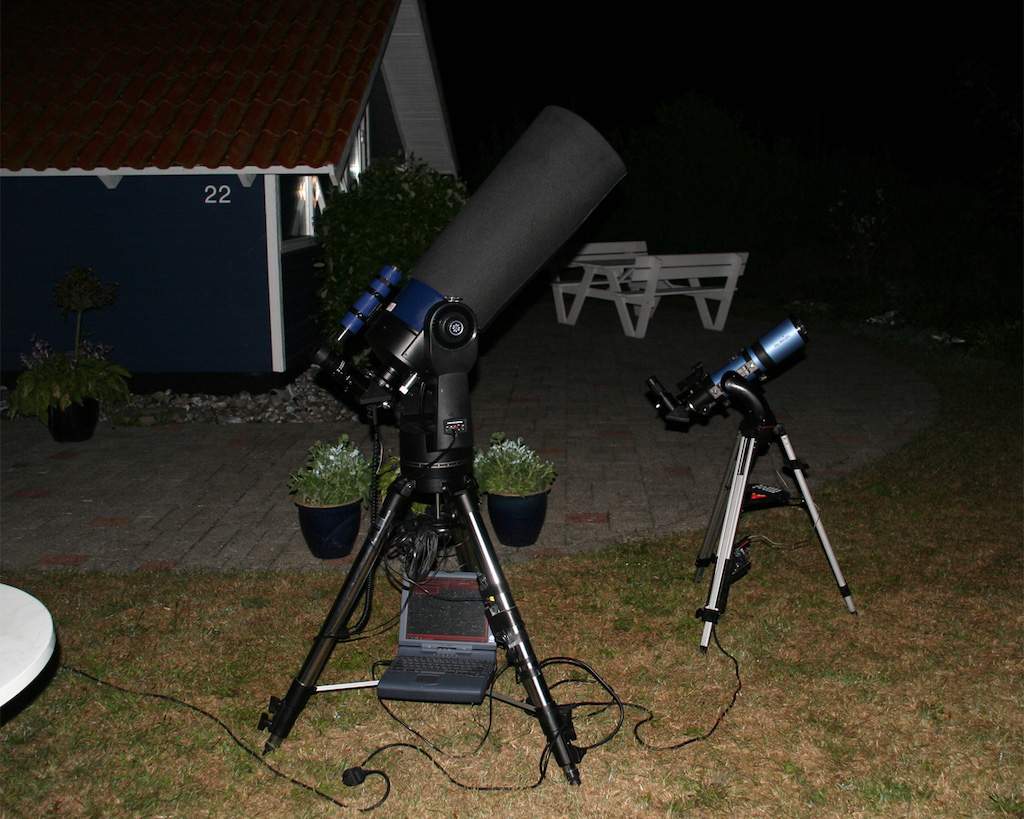

2005: First better pictures taken in Denmark. With this equipment (missing wedge) is it impossible to take pictures more then some minutes.
|
|
